MTS
美國MTS／Air Spring Test System

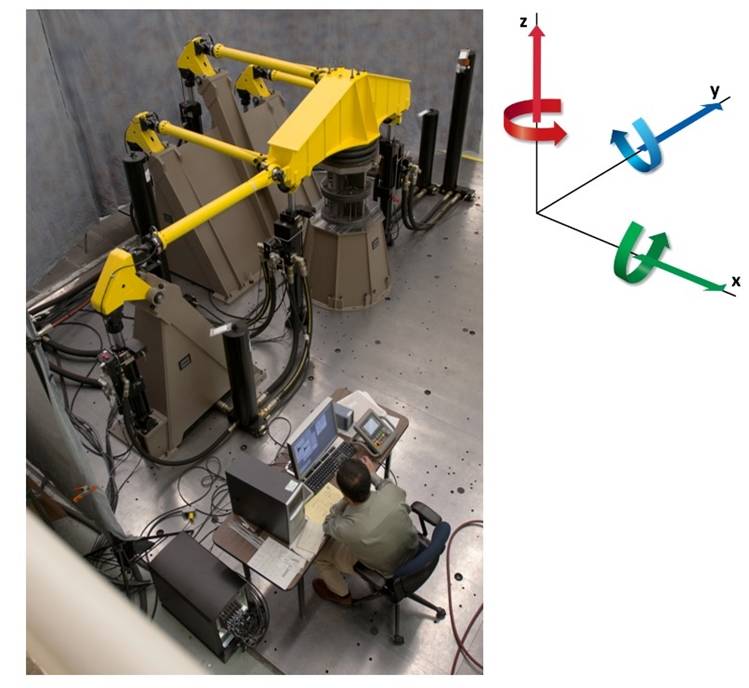

MTS／Air Spring Test System
Apply precise loading in six degrees of freedom to rolling stock air springs to evaluate durability and measure stiffness, multi-axial response and damping characteristics. These robust multi-axial systems employ state-of-the-art MTS controls, application software and hydromechanical technologies to improve the noise, vibration and handling aspects of rolling stock ride quality.
| Vertical (Z) Force Displacement | 350 kN total 350 mm |
| Longitudinal (X) Force Displacement | 250 kN total 250 mm |
| Lateral (Y) Force Displacement | 75 kN 150 mm |
| Roll | ±11 degrees |
| Yaw | ±8 degrees |
| Pitch | ±10 degrees |
