美國MTS/Railway Damper Test System
MTS/Railway Damper Test System

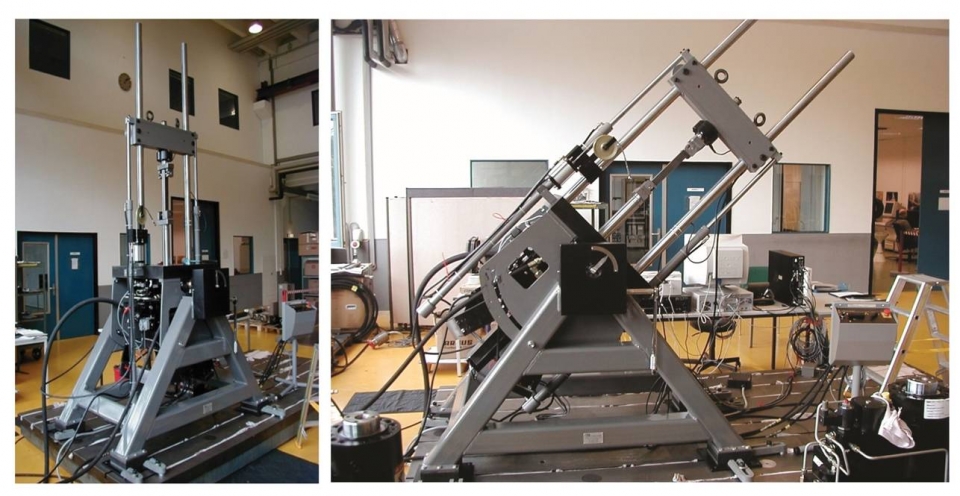

Apply uni-axial loading at angles ranging from 0-90 degrees to measure the dynamic characteristics of railway dampers in real-world operating configurations and environmental conditions. These precision systems feature purpose-built servohydraulic load frames, FlexTest controls and full-featured MTS Damper Testing Software to provide a comprehensive array of damper performance and durability testing capabilities.

Tilting Angle | 0-90 degrees |
Force Capacity | ± 50 kN |
Stroke | 250 mm |
Test Space (Vertical) | 1300 mm |
Load Cell Accuracy @ 50 kN | ± 0.5% |
Fixturing Attachments (2) | M12 x 1.25 mm rod eye bearings |
