Apply single- and dual-axis cyclic loading to full-scale wind turbine blades and sub-components at resonant frequencies to meet fatigue-testing demands of International Electrotechnical Commission (IEC) Technical Specification 61400-23. The MTS offering includes two complementary solutions: the fast, powerful Ground-coupled Resonance Excitation (GREX) System, and the flexible, efficient Inertial Resonance Excitation (IREX) System.
聯絡我們聯絡我們
Related queries
洽詢單top

所有產品

美國MTS／Wind Turbine Blade Fatigue Test Solutions

MTS／Wind Turbine Blade Fatigue Test Solutions
美國MTS／Wind Turbine Blade Fatigue Test Solutions
美國MTS／Wind Turbine Blade Fatigue Test Solutions
美國MTS／Wind Turbine Blade Fatigue Test Solutions
美國MTS／Wind Turbine Blade Fatigue Test Solutions
美國MTS／Wind Turbine Blade Fatigue Test Solutions
加入
洽詢單

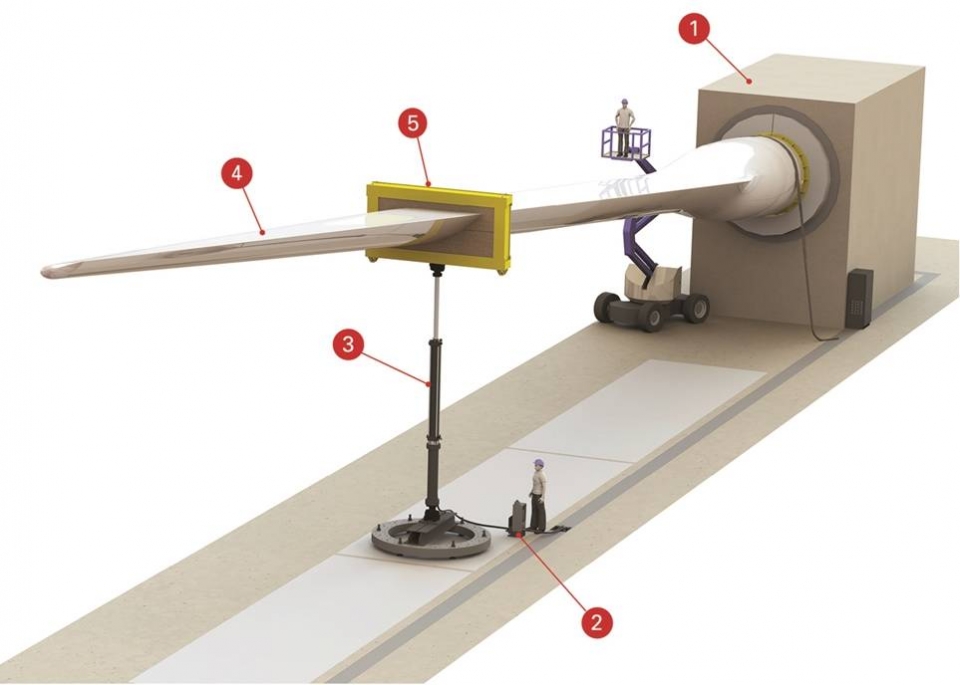

Diagram
1. Reaction Block
2. Hydraulic Service Manifold
3. Ground Resonance Excitation (GREX) System
4. Wind Turbine Blade Specimen
5. Loading Fixture
GREX 50 Standard Specifications
Force capacity 50 kN
Actuator Length 5.67 m at mid-stroke
Stroke 1.75 m
Velocity 2.5 m/sec (@25kN force)
Servovalve 450 lpm
Special Options
Extension Tube Up to 3m extension
Hydraulic System 260 lpm (minimum recommended)
Accumulation required 75 L Pressure / 37.75 L Return (recommended)
