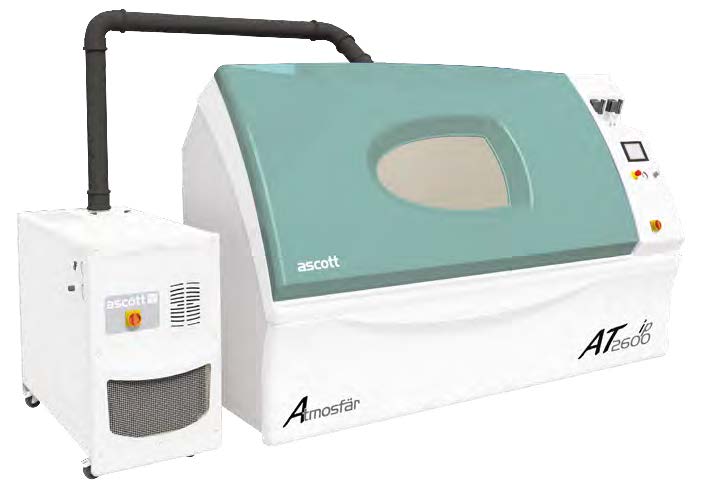

Atmosfär腐蝕試驗機
Atmosfär chambers have been designed specifically for fully automatic testing in accordance with highly demanding test profiles from the world’s top automotive manufacturers. The Atmosfär chamber is available in 2 sizes, 1300L or 2600L and is fitted with certain accessories to accommodate the test standards from FORD, VOLVO, SCANIA plus many others. There are different temperature ranges available, Lite from 20°C, or sub-zero from -20°C/-4°F or -40°C/-40°F.
-
These tests are cyclic in nature and comprise of exposure under controlled and varying conditions of temperature and humidity, with intermittent spraying of a salt solution directly on to the samples under test, from a high level swaying spray bar.
Extensive optional testing facilities:
Extensive range optional testing facilities, such as SO2 gas dosing and liquid immersion.
Fully automatic laboratory-accelerated atmospheric corrosion testing to:
• ISO 16701
• Ford CETP 00.00-L-467
• Volvo VCS 1027,149 (ACT-1)
• Volvo VCS 1027,1449 (ACT-2)
• Volvo STD 423-0014
• TP.JLR.52.265
• Volvo STD 1027,1375
• GMW14872
• CCT1 & CCT2
• DIN 55635
• Scania STD4319
• VDA 233-102
All Ascott Atmosfär Corrosion Test chambers feature:
• Patented oscillating spray bar with magnetically coupled drive system, for compliance with the most demanding automotive test standards.
• Integrated air conditioning unit, to achieve demanding temperature and humidity combinations.
• Psychrometric humidity capability for control of humidity @ >94% RH.
Two model sizes:
• 1300 Ltr (45.9 cu ft)
• 2600 Ltr (91.8 cu ft)
