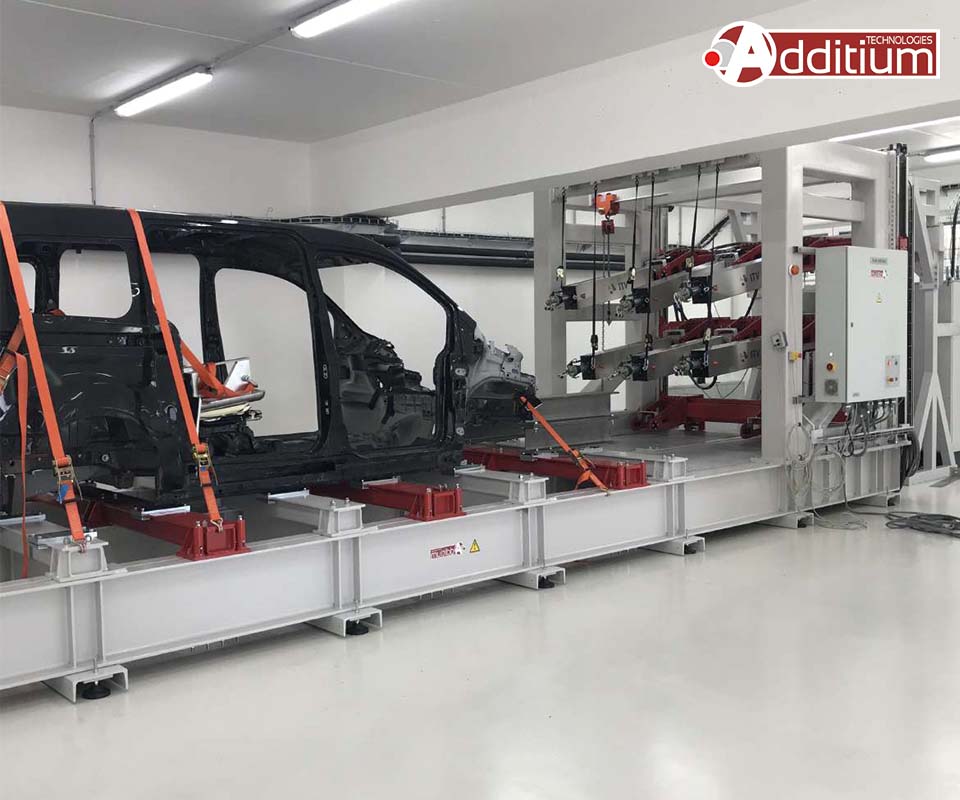

SBA 安全帶及座椅固定器強度試驗機

New version of SBA test rig based in servo-electric actuators. The system includes a reliable real time controller with specific improved algorithms and control strategies for ECE R14 and similar type profiles.
  • New version of SBA test rig based in servo-electric actuators. The system includes a reliable real time controller with specific improved algorithms and control strategies for ECE R14 and similar type profiles.




    ⦿ Clean and silent operation

    ⦿ Optional Bed frame (different sizes)

    ⦿ Enlarged actuators positioning range

    ⦿ Straight forward and intuitive control

    ⦿ Optional wireless pad for remote operation





    ADDITIUM has introduced for first time the use of ULTRA LIGHT high resistance chains (Tycan®) that will improve your Seat Belt Anchorage Test Rig operation and test set up. The chains are 100% made of Dyneema highest resistance fibre, providing a lot of advantages replacing traditional steel chains.



    SBA Features

    ✓ ECE R14, FMVSS 210, GB14167-2013, ISOFIX…

    ✓ Up to 9 actuators

    ✓ Dynamic force of 30 kN at 300 mm/s

    ✓ Stroke: 1000 mm

    ✓ Min./Max. vertical separation: 300 mm/2000 mm

    ✓ Min./Max. horizontal separation: 330 mm/2000 mm

    ✓ Motorized actuators vertical positioningOther features under resquest
