美國MTS／Wind Turbine Blade Fatigue Test Solutions
Apply single- and dual-axis cyclic loading to full-scale wind turbine blades and sub-components at resonant frequencies to meet fatigue-testing demands of International Electrotechnical Commission (IEC) Technical Specification 61400-23. The MTS offering includes two complementary solutions: the fast, powerful Ground-coupled Resonance Excitation (GREX) System, and the flexible, efficient Inertial Resonance Excitation (IREX) System.
-

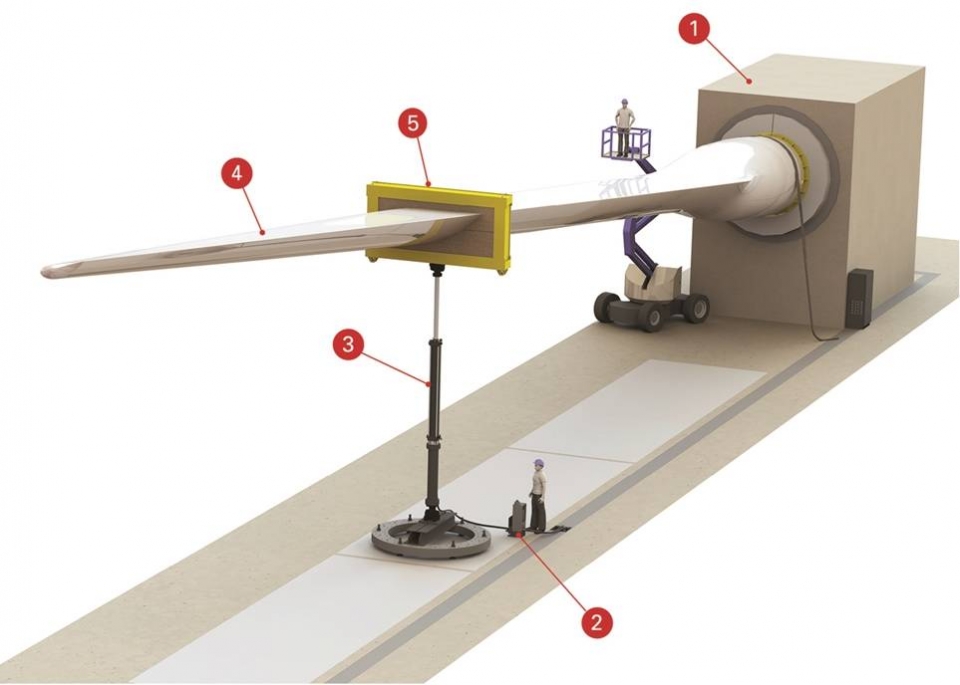

Diagram
GREX 50 Standard Specifications1. Reaction Block 2. Hydraulic Service Manifold 3. Ground Resonance Excitation (GREX) System 4. Wind Turbine Blade Specimen 5. Loading Fixture
Special OptionsForce capacity 50 kN Actuator Length 5.67 m at mid-stroke Stroke 1.75 m Velocity 2.5 m/sec (@25kN force) Servovalve 450 lpm Extension Tube Up to 3m extension Hydraulic System 260 lpm (minimum recommended) Accumulation required 75 L Pressure / 37.75 L Return (recommended)
